Description

SPECIFICATIONS

Name: Nema 17 Stepper Motor – 0.7Nm Holding Torque, 1.5A, 4-Lead, Multiple Body Lengths (34–60Mm), Ideal For 3D Printers &amp; Cnc Extruders
Brand: electrical center b2c
SKU: 44203
Availability: InStock

Nema 17 Stepper Motor Body 34mm 40mm 48mm 60mm 0.7Nm 1.5A 42 Step Motor DC 4-Lead Nema17 for Extruder CNC XYZ 3D Printer

Brand Name: HYSMOTOR

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 1.5A

Type: Micro Motor

Protect Feature: Totally Enclosed

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Torque: 0.7nm

Model: 42BYGH34S/40S/48S (cable length of plug-in type 1m)

Motor current: 1.5A

Output torque: 0.28Nm/0.4NM/0.55Nm

Body length: 34mm/40mm/48mm

Shaft length: 22mm

Shaft diameter: 5mm

Shaft mode: single shaft

Step angle: 1.8 two-phase

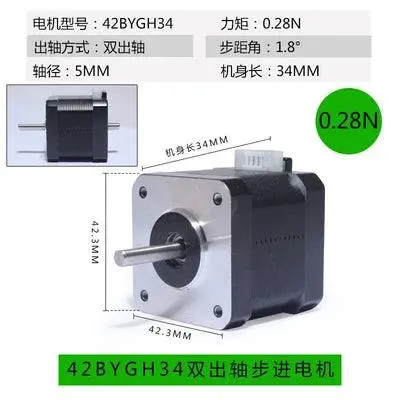

42BYGH34S Stepper motor body 34mm

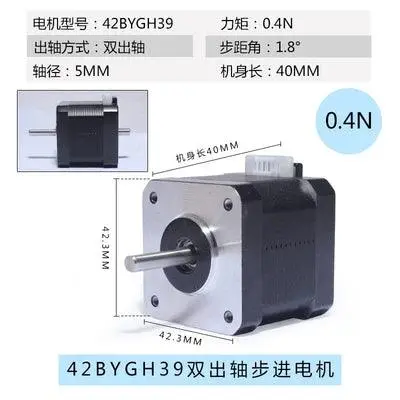

42BYGH40S Stepper motor body 40mm

42BYGH48S Stepper motor body 48mm

42BYGH60S Stepper motor body 60mm

Black wire A+; Green wire A-; Red wire B+; Blue wire B-

Explore more from our collection.

Additional information

Voltage(V)	singlle shaft, Double shaft
Speed(RPM)	42BYGH34S 0.28Nm, 42BYGH40S 0.4Nm, 42BYGH48S 0.55Nm, 42BYGH60S 0.7Nm
