Description
Manual Tatami Lift Column, Hand Crank Desk Leg, 21/25/28/31/36/42/46/50 Type, 6061 Aluminum Alloy, Max Load 500kg, for RV/Desk/Tatami Bed
Product Description
Product Name: Hand Crank Tatami Lift Column / Manual Desk Leg
Brand/Series: 盛唐和风壹家福 Series

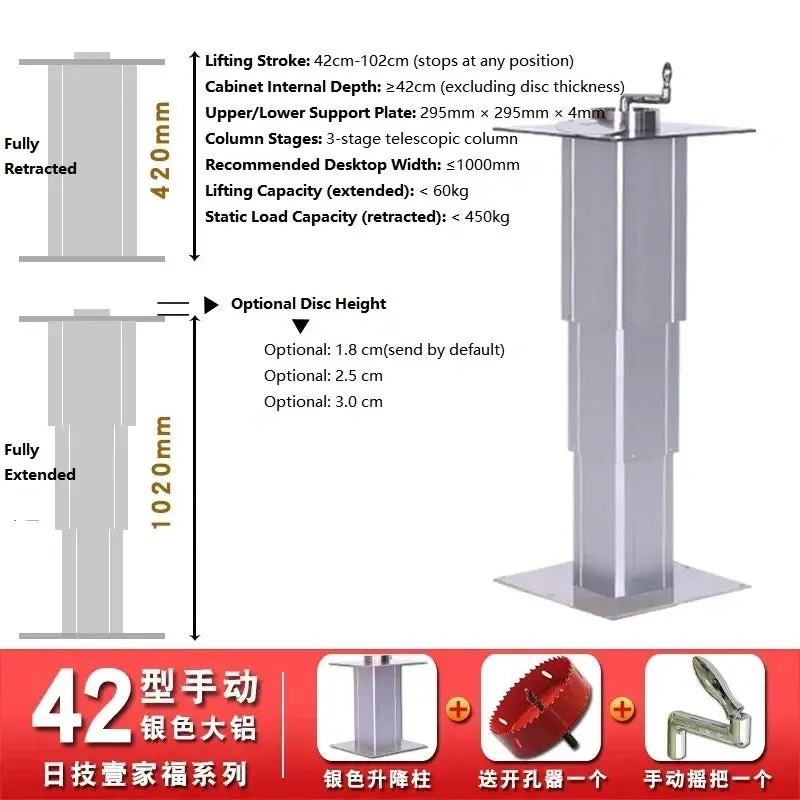

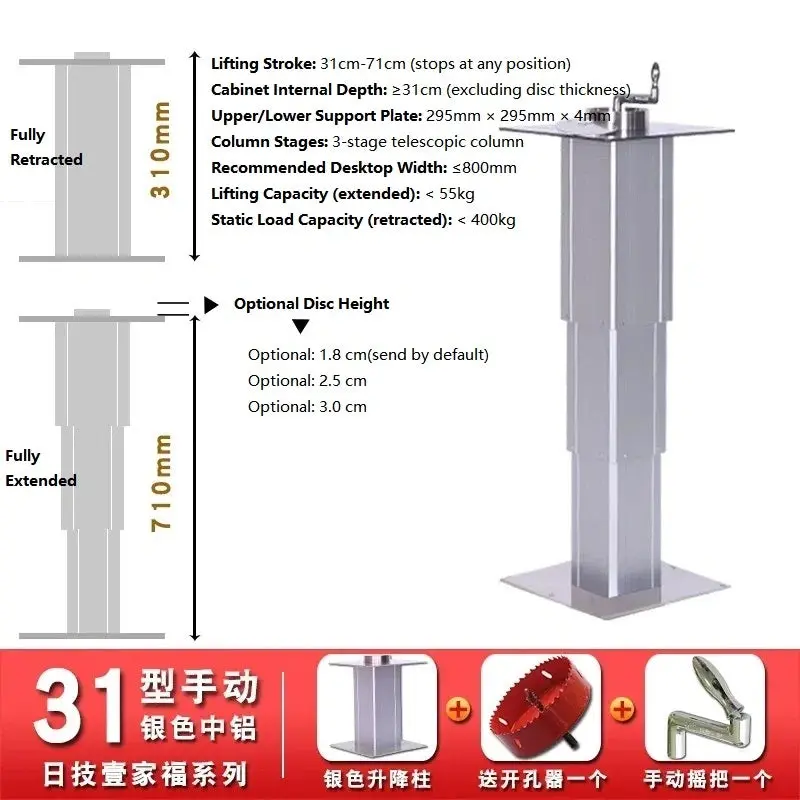

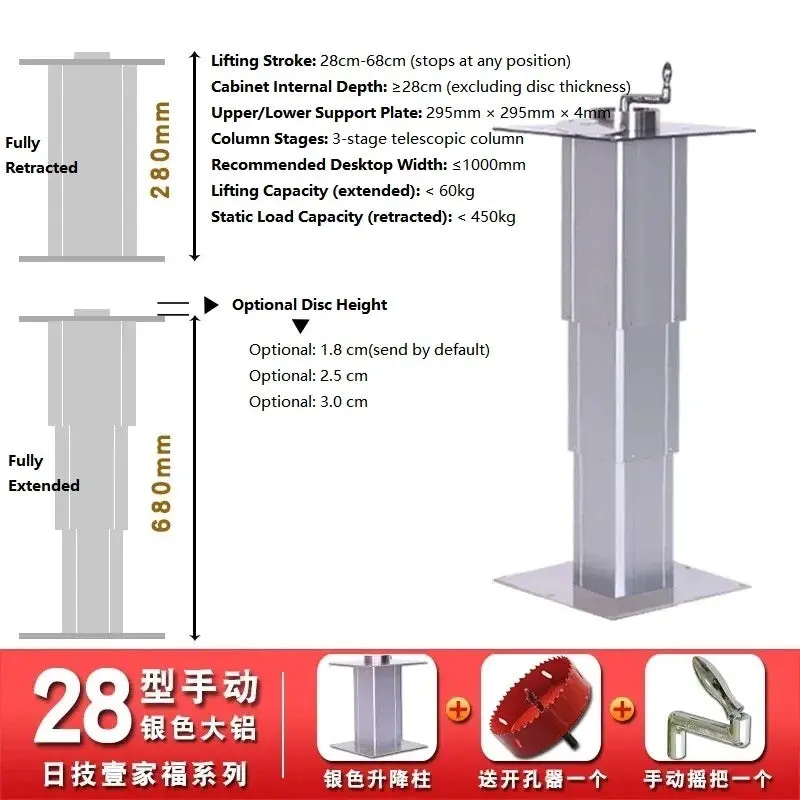

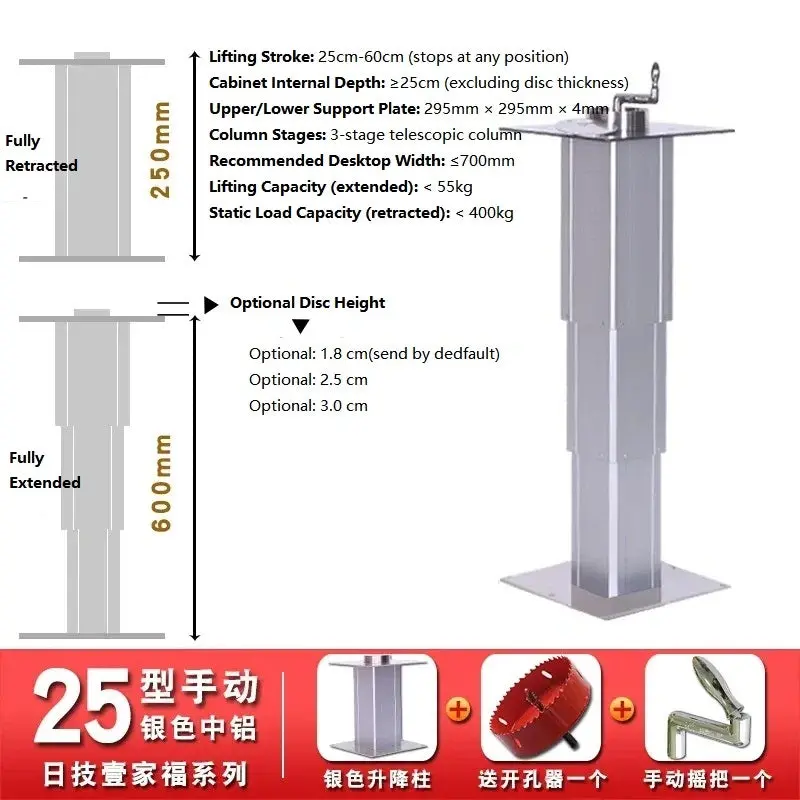

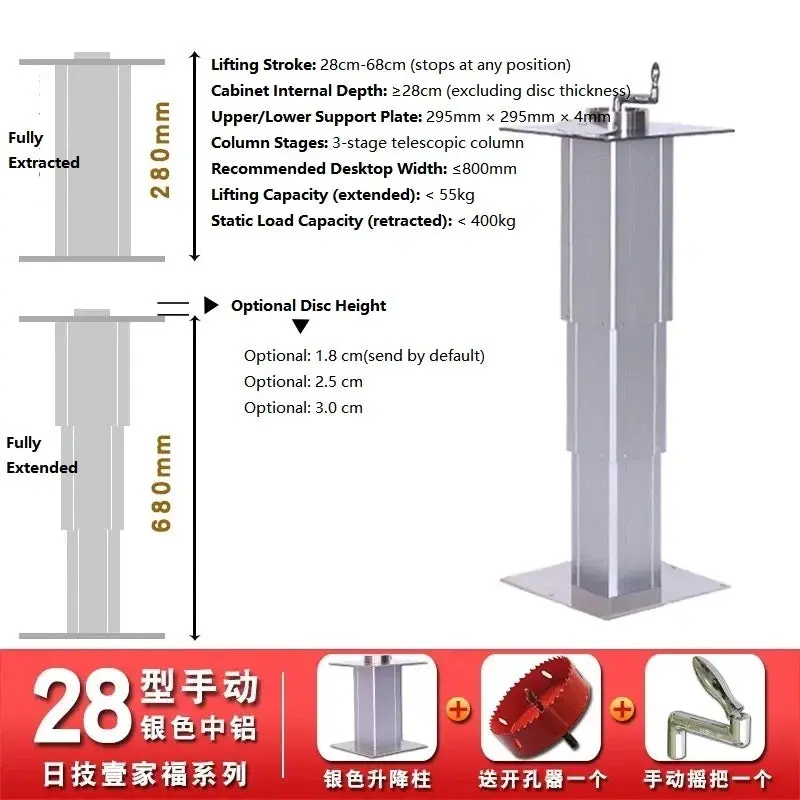

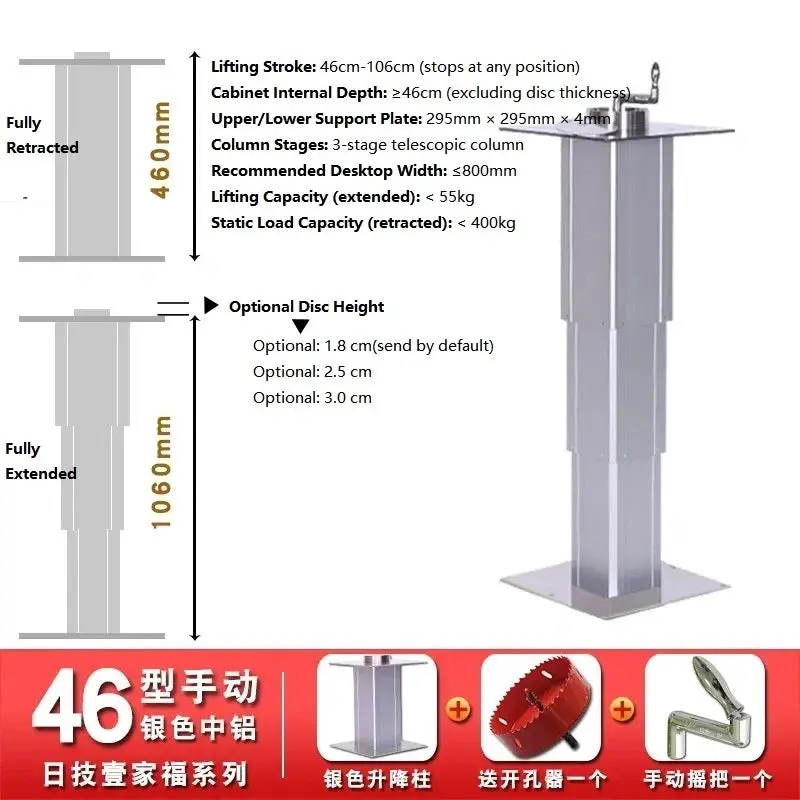

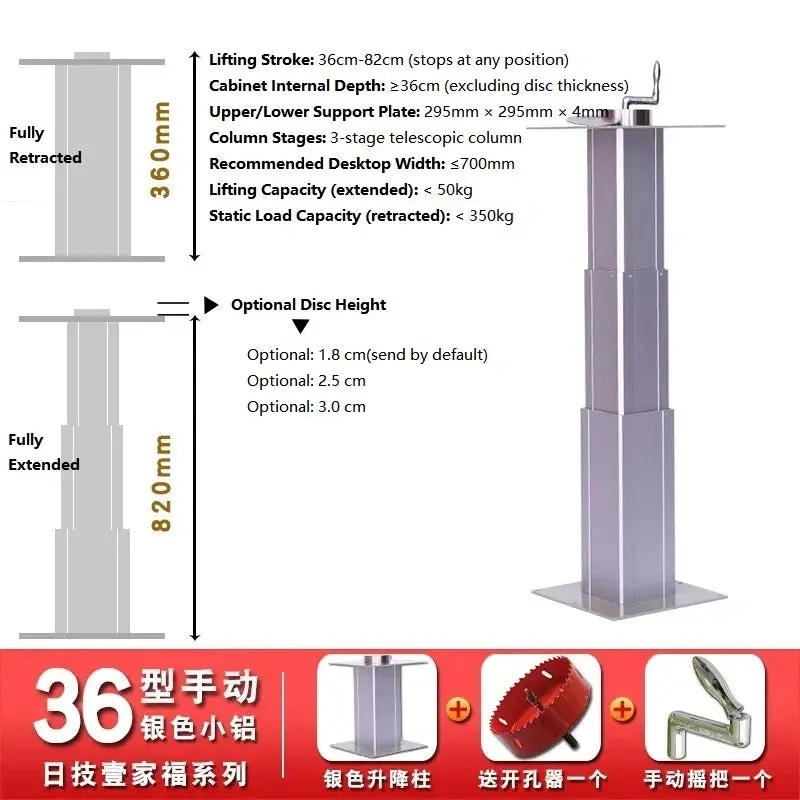

Models: 21 / 25 / 28 / 31 / 36 / 42 / 46 / 50 Type (select by cabinet depth)

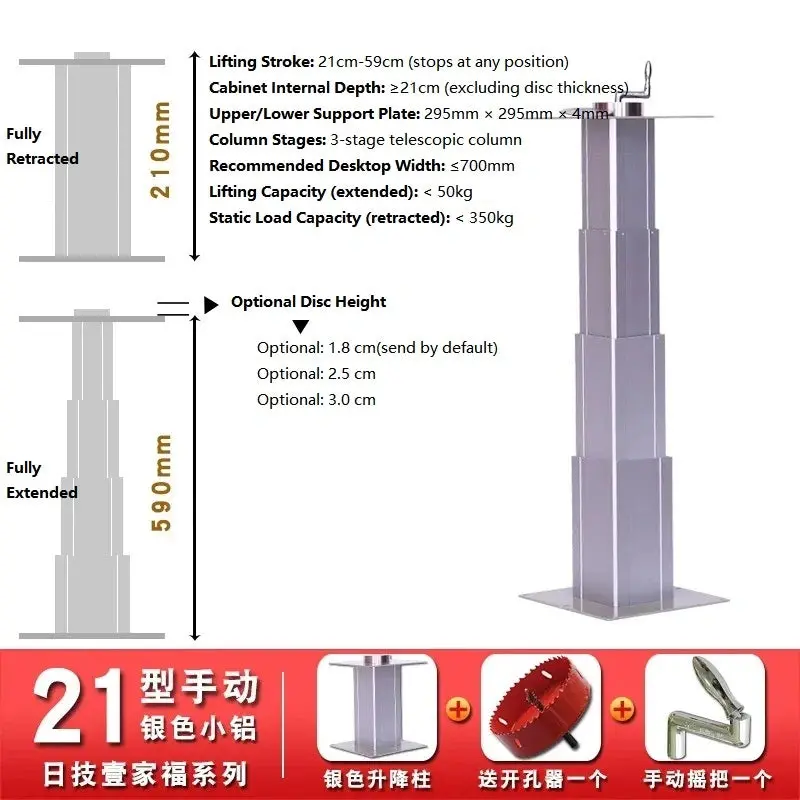

Structure: 3-stage telescopic column (4/5-stage for 21-type)
Material:
- Column: 6061 Aluminum Alloy, 9 optional colors
- Screw: High-precision trapezoidal mold steel screw
- Upper/Lower Plate: Q305 steel, 295×295×4mm, Germany baked paint anti-rust
- Desk Disc: 45# steel, 18/25/30mm height options
- Crank Handle: Zinc alloy, foldable, galvanized anti-rust
- Cover Plate: Stainless steel, 103/111mm diameter
Key Specifications:
- Stroke: Adjustable, stops at any position (varies by model: 350mm-600mm)
- Min Height: 210-500mm (excluding disc height)
- Max Height: 590-1100mm (excluding disc height)
- Max Static Load (retracted): ≤500kg
- Lifting Capacity (extended): ≤60kg
- Cabinet Depth Requirement: ≥21cm / 25cm / 28cm / 31cm / 36cm / 42cm / 46cm / 50cm (by model)
- Recommended Desk Size: ≤700mm (small aluminum), ≤800mm (medium aluminum), ≤1000mm (large aluminum)
Features:
- Manual hand crank design, adjustable height with 69 full turns to full height (varies by model)
- Durable 6061 aluminum column with heat treatment, anti-corrosion, anti-oxidation, and anti-static nano coating
- High-strength mold steel trapezoidal screw for smooth and stable lifting
- Q305 steel support plates with high toughness and deformation resistance
- Multiple disc height options (18/25/30mm) to match different desk thicknesses
- Foldable zinc alloy handle for space-saving storage
- Suitable for tatami beds, RV desks, and custom furniture
Applications:

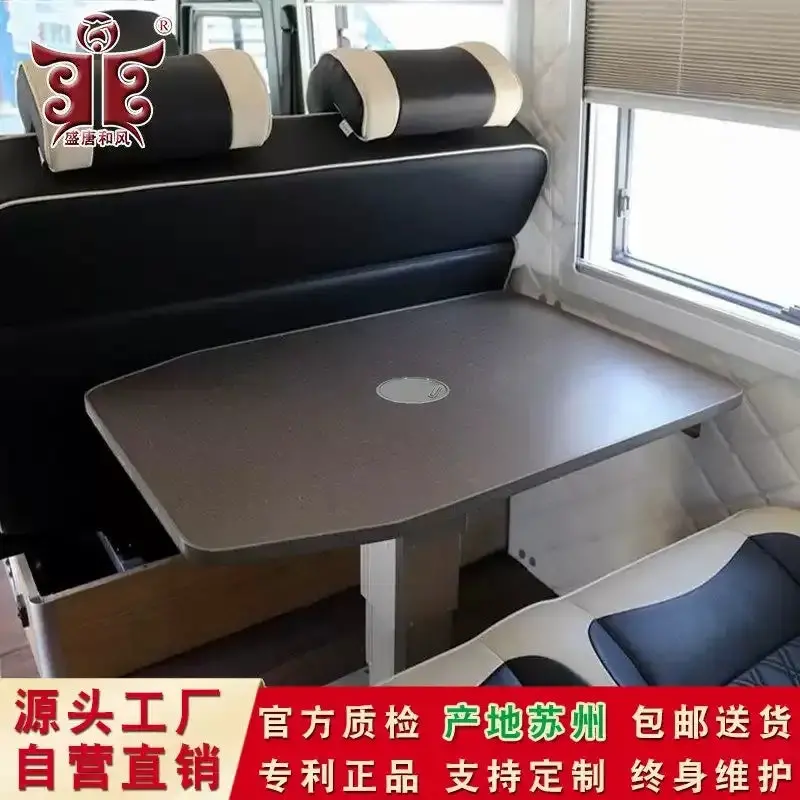

Tatami bed lift, RV table leg, adjustable height desk, low cabinet lift, hidden furniture mechanism.
DATA SHEET
| Attribute | English |
|---|---|
| Product Type | Manual Lift Column / Desk Leg |
| Operation Type | Hand Crank / Manual |
| Series | Tatami Lift Column |
| Models | 21/25/28/31/36/42/46/50 Type |
| Column Material | 6061 Aluminum Alloy |
| Max Static Load | ≤500kg |
| Lifting Capacity | ≤60kg |
| Stroke Range | 350mm-600mm (by model) |
| Min/Max Height | 210mm-1100mm (excluding disc) |
| Disc Height Options | 18mm / 25mm / 30mm |
| Support Plate Size | 295×295×4mm |
| Recommended Desk Size | ≤700/800/1000mm (small/medium/large aluminum) |
| Cabinet Depth Requirement | ≥21cm~50cm (by model) |
| Applications | Tatami Bed, RV Desk, Adjustable Table, Hidden Furniture |
