Description

SPECIFICATIONS

Magnetic Contactor Main Contact Assembly LC1-F185 Contact Bridge LC1-F225 Stationary and Moving Contacts Accessories Repair Kit  lc1f185 contactor kit

Phase: 3

Number of Pole: 3

Model Number: LC1F185 LC1F225

Main Circuit Rating Voltage: 380V

Electricity Type: AC

Description

Notice

grade B :the contact point contains approximately 40% silver the thickness of the contact point is approximately :1.5mm

grade A : the contact point contains approximately 85% silver the thickness of the contact point is approximately :1.5mm

grade A plus : the contact point contains approximately 85% silver the thickness of the contact point is approximately :2mm

grade S:the contact point contains approximately 85% silver the thickness of the contact point is approximately :2.2mm

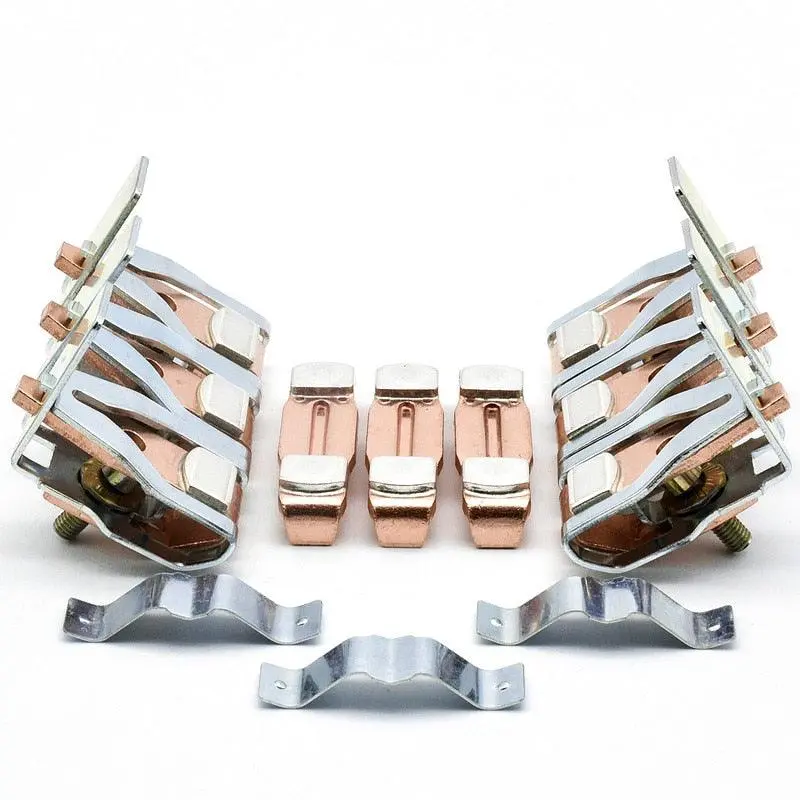

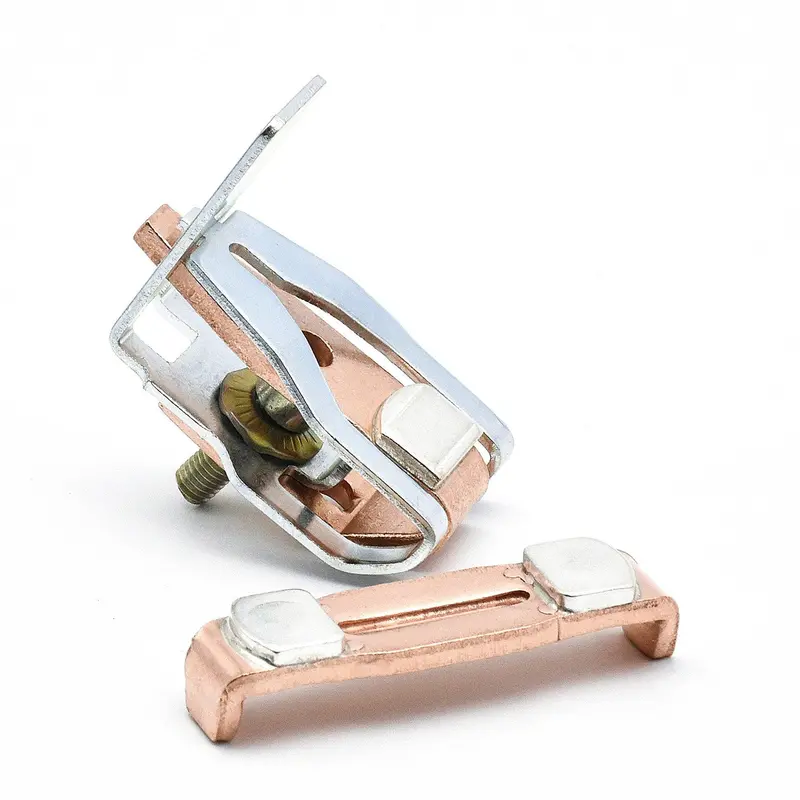

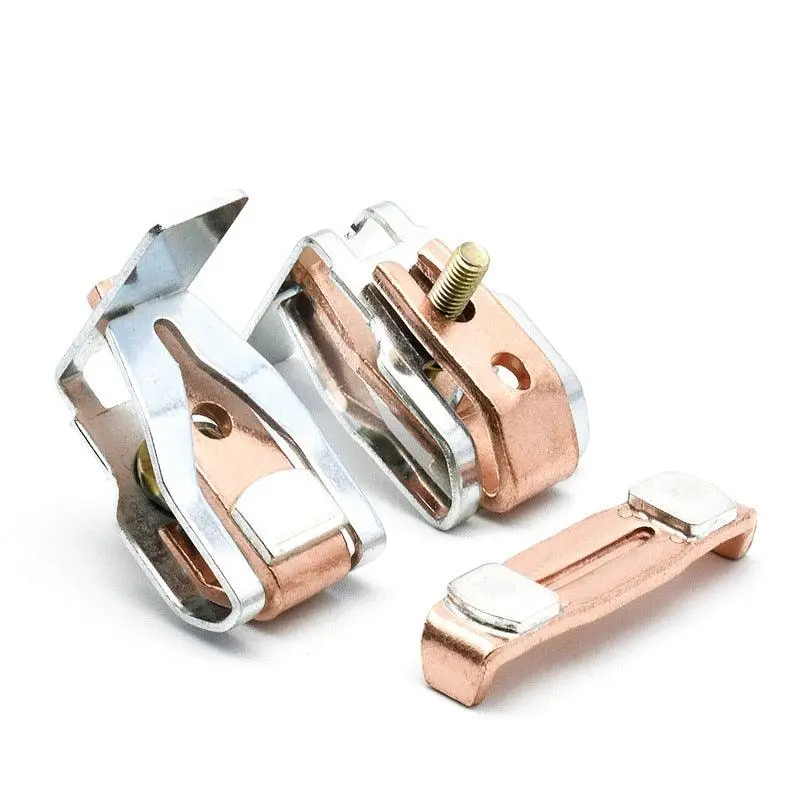

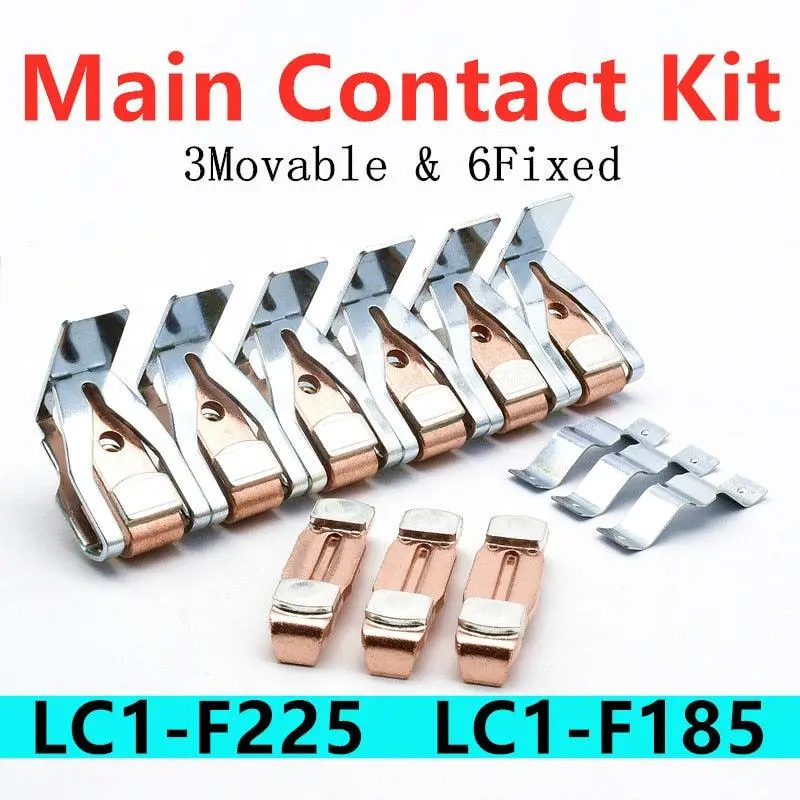

One set includes:3 movable parts & 6 fixed parts & 3 leaf springs Please check the picture below:

B grade:the color of the product is white .Please check the picture below :

A plus grade & A grade:the color of the product is red.Please check the picture below :grade S:the contact point contains approximately 85% silver the thickness of the contact point is approximately :2.2mm Please check the picture below:
