Description

SPECIFICATIONS

10 Sets Solar Z Mount Bracket 100% Aluminum Solar Panel Roof Mounting Bracket for Carvan Roof Power Accessories

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Material: Metal

DIY Supplies: Woodworking

Standard or Nonstandard: Standard

is_customized: Yes

Model Number: solar panel mounting

Structure: Single-side Bracket

Usage: Wall Bracket

Dimension: 48(L)x38(D)x27(H)mm

Z-Style Material: Aluminum

screws Material: stainless steel

use for: solar panel mounting

Size: Standard





 Pay attention please



1.A lot = 10 sets.

2.Shipped by Fedex or DHL.

 3.pack includes(100 set)

4.A set like pictures.

5.A lot = 10 sets (they be installed 100 solar panelS)

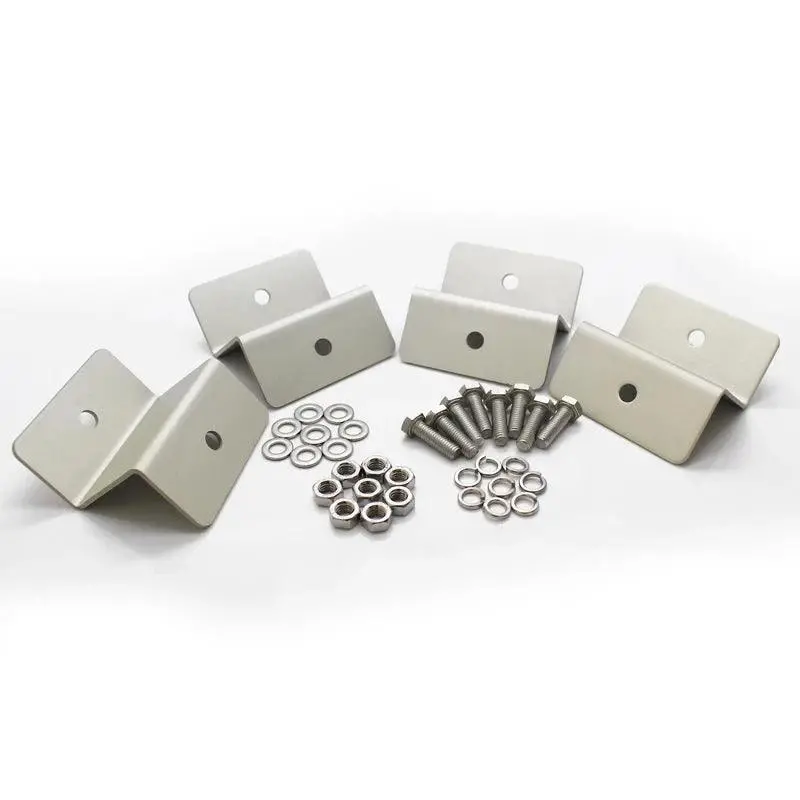

Aluminum mounting brackets 4pc



A SET,LIKE PICTURE



Install Manuel:

Step 1: Put the solar panel on the horizontal plane with the face side down,take out a 1 pc of bolt M6*16 and a washer.

Step 2: Insert the bolt to the panel frame hole from below then put down the caravan bracket with the bolt through the hole.

Step 3: Fitted the lock washer in then spin and tighten the nut M6.

Step 4: Mount the caravan brackets into the other panel frame holes in the same way.

Step 5 : Gently move the panel to the carvan roof,mark the exact place where you want the panel to be mounted.

Step 6 : Fixing the aluminum bracket to the marked palce by carefully drilling through the bracket hole with the wood screw.

Step 7: Carefully mount the other wood screws in the same way.

 Please contact me if you have any question.



 Pay attention please



1.A lot = 100 sets.

2.Shipped by Fedex or DHL.

 3.pack includes(100 set)

4.A set like pictures.

5.A lot = 100 sets (they be installed 100 solar panelS)



Aluminum mounting brackets 4pc



A SET,LIKE PICTURE



Install Manuel:

Step 1: Put the solar panel on the horizontal plane with the face side down,take out a 1 pc of bolt M6*16 and a washer.

Step 2: Insert the bolt to the panel frame hole from below then put down the caravan bracket with the bolt through the hole.

Step 3: Fitted the lock washer in then spin and tighten the nut M6.

Step 4: Mount the caravan brackets into the other panel frame holes in the same way.

Step 5 : Gently move the panel to the carvan roof,mark the exact place where you want the panel to be mounted.

Step 6 : Fixing the aluminum bracket to the marked palce by carefully drilling through the bracket hole with the wood screw.

Step 7: Carefully mount the other wood screws in the same way.
